The Plamac brand brings a fresh breath to digital UV printing, and leaves behind its competitors thanks to its productivity, cost savings and print quality. These successful results are displayed through technical data.
Turkish digital printing market’s newest brand Plamac’s superiority in UV printing does not remain unfulfilled. The technical data shows that it is very advantageous in terms of investment cost, printing cost and technical service compared to its competitors of flatbed and roll to roll models. Offered into Turkish market under the assurance of Pigment Reklam, Plamac models, especially in industrial advertising, appeals to all areas where digital printing is used.
Being the product of more than 15 years of technical research and development, Plamac models stand out as user-friendly as well as with their modular and flexible structures. For example, the Morpho 2513UV flatbed printer offers extremely high precision and reliable printing. It is possible to obtain very high print quality with its CMYK + Lc + Lm + White / Vanish print features. In addition, the roll-to-roll printer Reflion 3200 LED UV is a true industrial grade printer with robust construction.
Morpho 2513: UV printing in photo quality
The Morpho 2513 UV flatbed printer with a print size of 2500 x 1300 mm has 4-9 industrial Ricoh Gen5 print heads. With 8 print heads, the machine has a production speed of 65m2 per hour and provides print quality up to 1200 dpi. Morpho’s print head has an automatic capping system, automatic height adjustment and individual color channels for purging. Offering variable droplet sizes from 7 picoliters to 21 picoliters, the machine enables the best photo quality and clarity with grayscale printing technology. Grayscale technology enables 30-50% ink savings compared to competitors when droplets are created.
Many media such as paper, cardboard and cardboard, acrylic, wood, glass, ceramic, metal, leather, PVC, industrial film can be processed with Morpho 2513 UV flatbed. Using CMYK + Lc + Lm + White / Varnish or 4 line printing head for applications, Morpho delivers maximum printing speed. 3 types of special varnish application and three layer printing, color + white + color printing possibility is obtained at the same time. Sixteen types of white printing modes are offered, including bottom, top, and specific dots.
In addition to the user-friendliness and high efficiency of the Morpho 2513, it is also important to use environmentally friendly and human health-friendly LED UV inks. As in all other solutions, the machine, which is sold with the after-sale technical support assurance of Pigment Reklam, uses Aurelon, Caldera and optionally Onyx as RIP software.

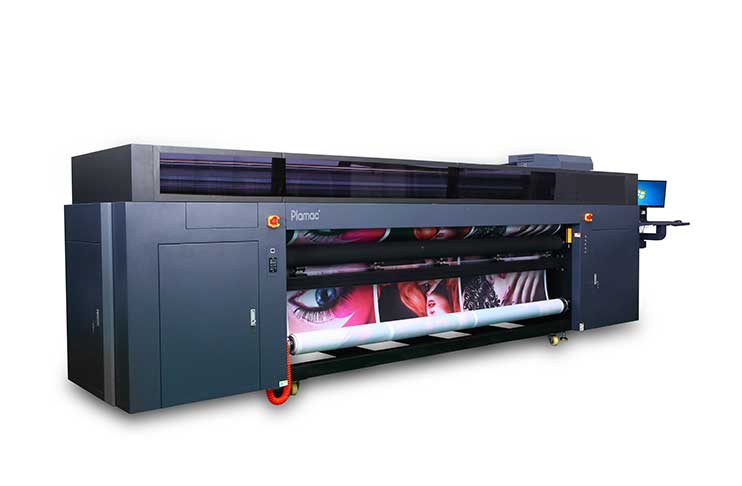

Reflion 3200: ideal for industrial or personalized printing
The Reflion 3200 LED UV roll to roll digital printer is one of Plamac’s most interesting models on the market; delivering the high speed and print quality demanded by roll-to-roll printing in a single machine with the latest technology. Offering personalized printing as well as its industrial printing power, makes it much more advantageous. Equipped with 4 to 9 industrial Kyocera print heads, Reflion offers resolutions up to 1200 dpi. The model can reach up to 86m2 production speed per hour; and is enhanced by Piezoelectric inkjet and Grayscale printing technologies.
The machine has a strong structure towards industrial use; offering standard CMYK, Lc, Lm, as well as optional white and varnish ink configurations. The Reflion 3200 supports up to 330 cm of flexible media; with a 40 cm roll diameter, vinyl, PET film, blockout, backlit materials and synthetic materials up to 360 kg. The machine provides an environmentally friendly roll to roll process, also takes into account the user’s ease of use. In addition to automatic carriage height adjustment to automatically detect the media thickness; it is equipped with anti-static devices to eliminate the bad influence from printing. Print head auto capping system to ensure the life time of the print head; and isolated from the air while standby is a significant saving. Thanks to its special system, the LED UV curing system protects the print head from direct curing light; and avoids overheating of the media.
Plamac will be the star of Sign İstanbul 2018
Pigment Reklam will launch the Plamac models for the first time in Turkish market at Sign Istanbul 2018; organized in September 20 to 23 at TUYAP Fair and Congress Center. The printers with completely innovative equipment can be seen for the first time in working conditions; at the Pigment Reklam booth in Hall 14 No 22 at the exhibition and technical information can be obtained.
